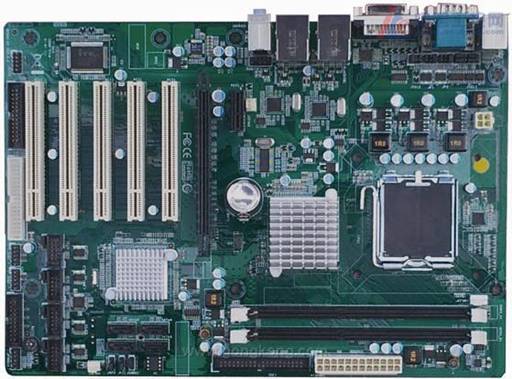

艾讯宏达即将推出一款采用英特尔G41芯片组的ATX主板SYM76941VGGA。SYM76941VGGA采用Socket   LGA775架构，支持英特尔酷睿4核/酷睿2双核/奔腾D/赛扬D处理器。采用英特尔G41+ICH7（或ICH7R）芯片组，最大支持8GB DDR3 内存。集成2个英特尔82574E PCI-E千兆网络控制器，6个RS232串口，8个USB2.0接口；支持1 个 PCI-EX16, 1个 PCI-EX1, 5 个 PCI扩展槽。

详细规格：
>> System
Processor                            Socekt LGA775 Support Core 2 Quad Q9000 Series/Core 2 Duo/ Pentium D/Celeron D
Chipset                              Intel G41 + ICH7/ ICH7R(option by MOQ), FSB 800/1066/1333MHz
DRAM                                 2 x 240PIN DIMM DDR3 800/1066 max up to 8GB
BIOS                                 8Mb AMI Flash ROM
Power Supply                       　1 x 24Pin ATX power connector, support AT/ATX mode
Watchdog                            　Watchdog timer function (Reset: 1~65535 level)
Dimension                            305mm x 244mm
>> I/O Ports
HDD                                  4 x SATA-300 Interface, support RAID 0/1/5/10(ICH7R)
FDD                                  1 x FDD port
Serial Port                          6 x RS232 COM ports
Parallel                             1 x Parallel pin-header
Audio                                Realtek ALC662 HD audio codec, support 5.1CH audio
Keyboard/Mouse                    　 2 x PS/2 for Keyboard and Mouse
LAN                                  2 x Intel 82574L PCI-E Gigabit Lan
USB                                  8 x USB2.0 (4 by onboard header)
Digital I/O                          4 input; 4 output
Expansion                            1 x PCIeX16, 1 x PCIeX1, 5 x PCI slots Expansion
>> Display
Graphics                             Intel GMA X4500, Max. shared system memory up to 1759MB
VGA                                  2048 x 1536 maximum resolution
DVI                                  2048 x 1536 maximum resolution
>> Environment
Operation Temperature          　　　0°~60°C
Humidity                             10~90%

SYM76941VGGA主板具备高性价比特点，即将量产，敬请期待！
