| Specification |
| Model No. |
DMK-590 |
| Size |
1U 19" Rackmount type |
| Construction |
Heavy duty steel |
| Keyboard |
105 key, notebook type
Multi-language: US, RU, GR, FR, UK, IT, KR, CH |
| Mouse |
Touchpad |
| Dimension (Wx H x D) |
17.417" x 1.736" x 23.2"
442.4mm x 44mm x 590mm |
| Weight |
13.5kg (30 lbs) |
| Power Supply |
Industrial level AC 100/240V Auto Switching |
| Protection |
Tempered glass protection to the LCD screen |
| Auto Power Switch |
LCD back-light will be turned off when the screen is turned down |
| Operating Temp. |
0-50癈 (32-122癋) |
| Folding Angle |
Up to 110?/td> |
| Extension Length |
431.8mm (17") |

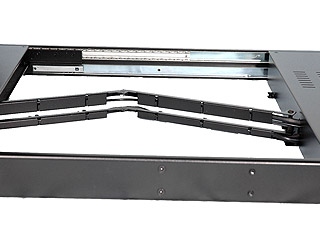

| Drawer Design |
Dual rails for panel and keyboard enables independent extraction of either panel or keyboard alone |
| KVM Interface |
VGA DB 15pin, PS/2 Keyboard mini Din 6 pinPS/2 Mouse mini Din 6 pin |
| LCD |
17" TFT LCD, 1280*1024, with 300 nits brightness,160/160 viewing angle, contrast ratio 450:1 |
| Certification |
CE, FCC |
| Ports |
8 ports KVM Switch. Daisy chain level up to 8 levels. PC connection up to 128 sets. |
| Display |
Diagonal
|
17" TFT LCD |
| Resolution |
1280 x 1024 |
| Display Area |
337.9mm x 270.3mm |
| Contrast Ratio |
450:1 |
Brightness
|
300 nits
|
Viewing Angle
|
160/160 |
Frequency
|
60Hz
|
Color
|
16.2M colors |
Control System
|
Auto adjustment, brightness, contrast, H-V position, frequency, size, and display mode |
LCD Cell Life Time
|
Lcell, Min. 50,000 Hrs. , MTBF based |
|
|
Min. |
Typ. |
Viewing Angle
|
Horizontal |
(70) |
(80) |
| Vertical |
Response Time
|
TR |
none |
(5) |
| TF |
(11) |
| Accessories |
| Model |
DMK-590 |
| Extension Bracket |
x 2 |
| Power Cord |
x 1 |
| D-Sub 15VGA-PS/2 Cable (3 in 1) |
x168 |
Screw Package
|
x 1
|
| User Manual |
x 1 | | | | |
