Meets EIA310c; IEC-3 specifications
One set built-in keyboard, touchpad, monitor
With high-brightness TFT LCD Panel

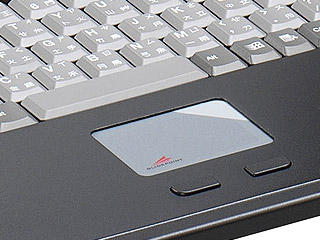

Membrane keyboard in 105 keys, with touchpad
Built-in rail self-locking device
D-Sub 15 pin to VGA, USB keyboard/mouse cable
Specification |
Model No.
|
SMK-820
|
Size
|
1U 19" Rackmount type
|
Keyboard
|
Notebook type, 105 keys
|
Mouse
|
Touchpad |
Dimension (W x H x D)
|
17.417" x 1.75?x 21.6?442.4mm x 44.5mm x 550mm)
|
Weight
|
16kg (37.27 lbs)
|
Power Supply
|
AC 110 / 220 V Auto Switch or DC+48V
|
Protection
|
Rail with self-locking device
|
Auto Power Switch
|
LCD back-light will automatically shut off whenThe screen set fold
|
Operating Temp.
|
0-50癈 (32-122癋)
|
Folding Angle
|
Up to 110?BR> |
Cabinet Support Length
|
Up to 40" Maximum
|
| Ports |
D-Sub 15 pin |
| Display |
Diagonal Size
|
17" (431.8mm)
|
| Resolution |
1280 x 1024 |
| Display Area |
337.92mm x 270.34mm |
| Contrast Ratio |
450:1 |
| Brightness |
300NTS |
Frequency
|
60Hz |
| Color |
16.7M colors |
| Control System |
OSD |
| LCD Protection |
Yes |
| Accessories |
| Model No. |
SMK-820 |
| Extension Bracket |
x 2 |
| Power Cord |
x 1 |
| D-Sub 15 VGA+USB All-in-One Cable |
x 1 |
Screw Package
|
x 1 |
| User''''''''s Manual |
x 1 | | | | |
