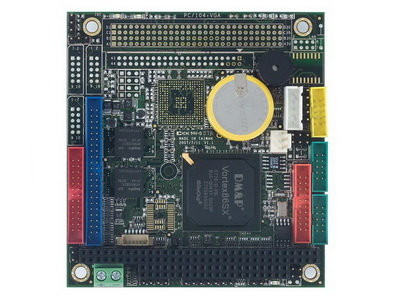

| SoC |
DM&P SoC CPU Vortex86SX- 300MHz
Real Time Clock with Lithium Battery Backup |
| Cache |
L1:16K I-Cache, 16K D-Cache |
| Bus |
PC/104 standard compliant
PC-104, PC/104+ (Optional) |
| BIOS |
AMI BIOS |
| System Memory |
128MB DDR2 onboard |
| Watchdog Timer 0 & 1 Sets |
Software programmable from 30.5 µsec. To 512 sec. x 2
sets (Watchdog 1 fully compatible with M6117D) |
| Flash Disk Support |
Onboard 2MB SPI Flash Disk
MSTI EmbedDisk Module (16MB and above) |
| I/O Interface |
Enhanced IDE port (UltraDMA-100/66/33) x1
RS-232 port x1
RS-232/485 port x1
USB port (Ver2.0) x2
Parallel port x1
16-bit GPIO port x1 |
| Connectors |
2.0mm 44-pin box header for IDE x1
2.0mm 26-pin box header for Printer x1
2.0mm 20-pin box header for 16-bit GPIO x1
2.0mm 10-pin box header for USB x1
2.0mm 10-pin box header for RS-232 x2
2.54mm 5-pin box header for Keyboard x1
2.54mm 5-pin box header for Mouse x1
2.54mm 7-pin header for Redundancy Signal x1
2.54mm 4-pin header for -5V, -12V, +12V, GND, DC-in x1
2.54mm 3-pin header for RS-485 x1
2.54mm 2-pin header for Reset x1
2.54mm 2-pin header for System-Fail-SW x1
1.25mm 6-pin wafer for JTAG x1 |
| Power Requirement |
Single Voltage +5V @ 300mA |
| Weight |
75g |
| Board Size |
90 X 96mm (3.54 x 3.77 inches) |
| Operating Temperature |
-20°C ~ +70°C
-40°C ~ +85°C(Optional) |
