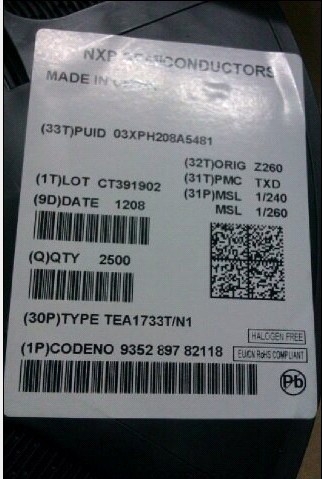

TEA1733全新原装现货13724201506李生。QQ:2629331408.NXP 公司的TEA1733T, TEA1733P, TEA1733LT和TEA1733LP是低成本 GreenChip III 75瓦开关电源(SMPS)控制器，适用于反激拓扑。采用固定频率模式和频率抖动，以降低EMI。输入电压12V到30V，保护包括过功率保护(OPP)，输入欠压保护(UVP)和过压保护(OVP)，输出OVP和超温保护(OTP)。控制功率达75W。本文介绍了TEA1733x主要特性，方框图以及典型配置图和典型应用电路图。
TEA1733(L)T; TEA1733(L)P GreenChip III SMPS control IC
The TEA1733T, TEA1733P, TEA1733LT and TEA1733LP are low cost Switched Mode Power Supply (SMPS) controller ICs intended for flyback topologies. They operate in fixed frequency mode. To reduce ELectroMagnetic Interference (EMI), frequency jitter has been implemented. Slope compensation is integrated for Continuous Conduction Mode (CCM) operation.
The TEA1733(L) includes OverPower Protection (OPP). This enables the controller to operate under overpower situations for a limited amount of time.
Two pins, VINSENSE and PROTECT, are reserved for protection purposes. Input UnderVoltage Protection (UVP) and OverVoltage Protection (OVP), output OVP and OverTemperature Protection (OTP) can be implemented using a minimal number of external components.
At low power levels the primary peak current is set to 25 % of the maximum peak current and the switching frequency is reduced to limit switching losses. The combination of fixed frequency operation at high output power and frequency reduction at low output power provides high-efficiency over the total load range.
The TEA1733 series enables low cost, highly efficient and reliable supplies for power requirements up to 75 W to be designed easily and with a minimum number of external components.
本公司供应NXP全系列：TEA1733T ,TEA1751T TEA1761T TEA1791T TEA1752T TEA1532T 等全新原装现货，价格优势，假一赔十，欢迎咨询：13724201506李佰顺。QQ:1075654360
