PX633

PX633

分  类：其它

品  牌：欧米茄

厂  商：Omega工业测量（中国）

型  号：PX633

相关行业：

发布时间：2019-12-19 17:15 浏览人数：人

最新产品

    产品详情
    参数
    包装
    • Available with Accuracies of 0.5%, 0.25% and 0.1% of Full Scale
    • Designed for Complete Submergibility
    • Unique Cable Seal System Insures Water-Tight Integrity
    • High Static Accuracy and Repeatability
    • Fully Temperature Compensated
    • CE Certificate Included
    • 100% Computer Tested, Calibrated and Serialized
    • Calibration Sheet Provided

      •        Typical Applications:
                  •Well Monitoring
                  •Slug Tests
                  •Pump Control
                  •Groundwater Monitoring
                  •Soil Remediation
                  •Oceanographic Research
                  •Lift Stations
                  •Level Control
                  •Surface Water Monitoring

      PX633 Submersible Level Transmitter is designed for dealing with the most demanding level measurement conditions. The sensor adopts advanced microprocessor technology with comprehensive linear and temperature error compensation assuring the high precision measurements.
      The probe employs full potting, reference tube condensation countermeasures, a dual seal design, and a rugged stainless steel body to assure long term reliability, performance, and stability. The signal transmitting module has transient voltage protection to assure operation under the harsh surge voltage environments (surge protection is not guaranteed and is not covered by warranty). An inverted cone seal extends working life of cable and transducer in conditions were the sensor may experience severe stress from turbulent process media. PX633 Submersible level transmitter is the optimal choice to satisfy all of high demand level measuring applications.



      Specifications
      Accuracy: 20°C ± 5°C (68°F ± 9°)
            PX633A1: 0.01% FS NLHR
            PX633A2: 0.25% FS NLHR
            PX633A5: 0.50% FS NLHR
      Long Term Stability: ±0.2% FS/ year
      Ambient temperature effects (20°C to 80°C): ±0.2% FS/10K
      Power Supply Effects:± 0.005% FS/V (Zero and Span)
      Load Effect: ± 0.05% FS/kΩ (Zero and Span)
      Vibration Effects: IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<±3mm) <0.1% FS
      Supply Voltage (U): 10-30 VDC
      Output Signal: 4 to 20mA DC
      Load Resistance Ω: <(U-10)/0.021
      Maximum Current: 20.8mA
      Transmission Distance: < 1000m
      Power Consumption: 500mW(20.8mA output @ 24VDC)
      Operating Temperature: -10 to 70°C (14 to 158°F)
      Storage Temperature:-30 to 80°C (- 22 to 176°F)
      Protection Class: IP68

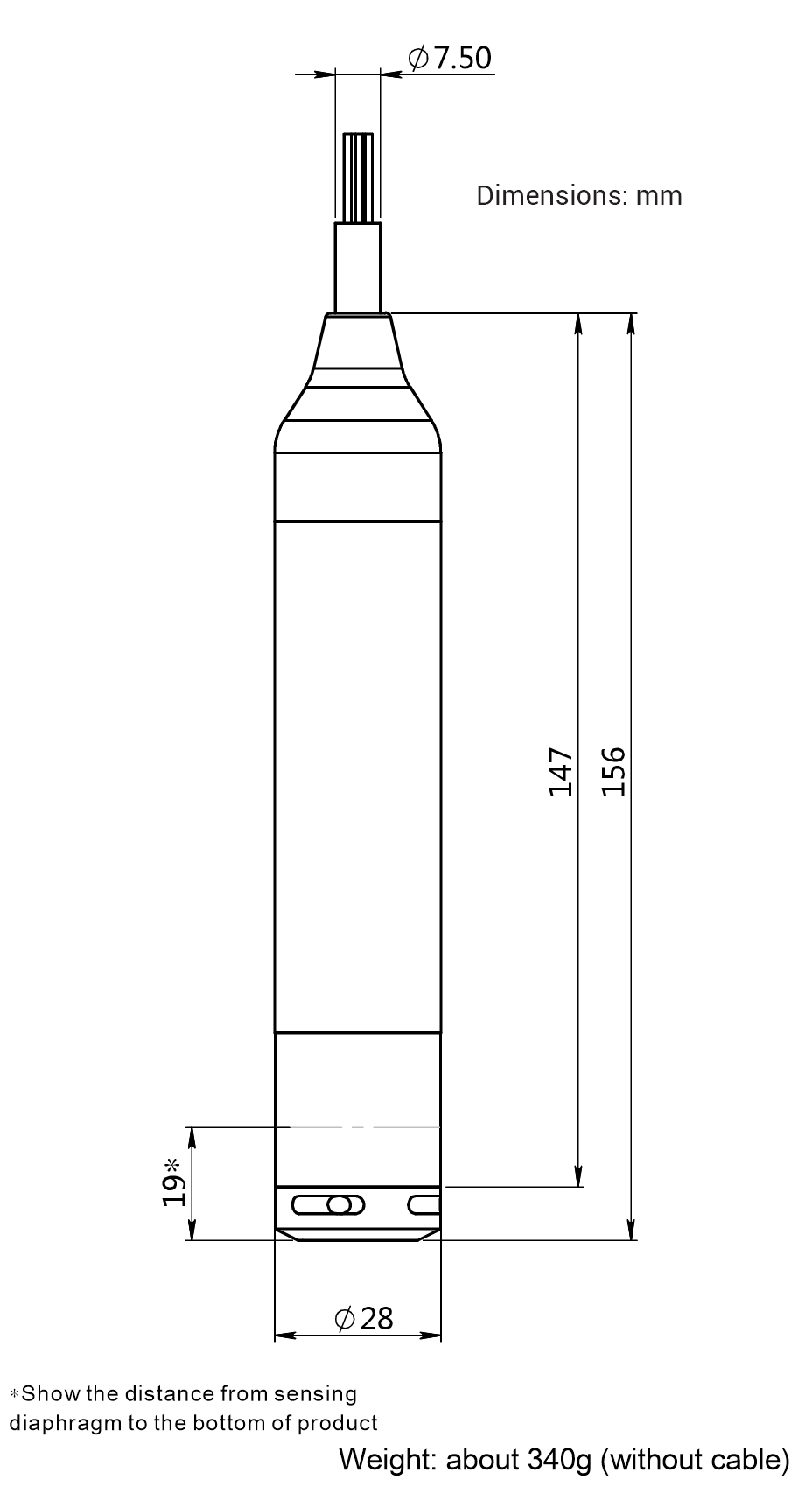

      Electrical Connection: PUR cable, outer diameter (7.5±0.2)mm
      Isolation Diaphragm Material: 316 SS
      Fill Fluid: Silicon oil
      Sensor Seal: O-ring, FMK
      Side Cover Material / Diameter: 316 SS/ 28mm
      EMC Environment:
            GB/T 9254/CISPR22
            GB/T 17626.2/IEC61000-4-2
            GB/T 17626.3/IEC61000-4-3
            GB/T 17626.8/IEC61000-4-8
            GB/T 17626.4/IEC61000-4-4
            GB/T 17626.5/IEC61000-4-5
            GB/T 17626.6/IEC61000-4-6


      1.Tank Cable Clamp, PX633-CLAMP
      2.Transmitter Cable
      3.Level transmitter
      4.Counter weight, PX633-WEIGHT
      5.Cable clamp hanger, PX633-HANGER
      6.Protective Tube (user provided)



      7.Thread Connection, PX633-M20, other threads avaliable


         Nominal Cable lengths noted, tolerance is ± 0.5m/1.5ft
